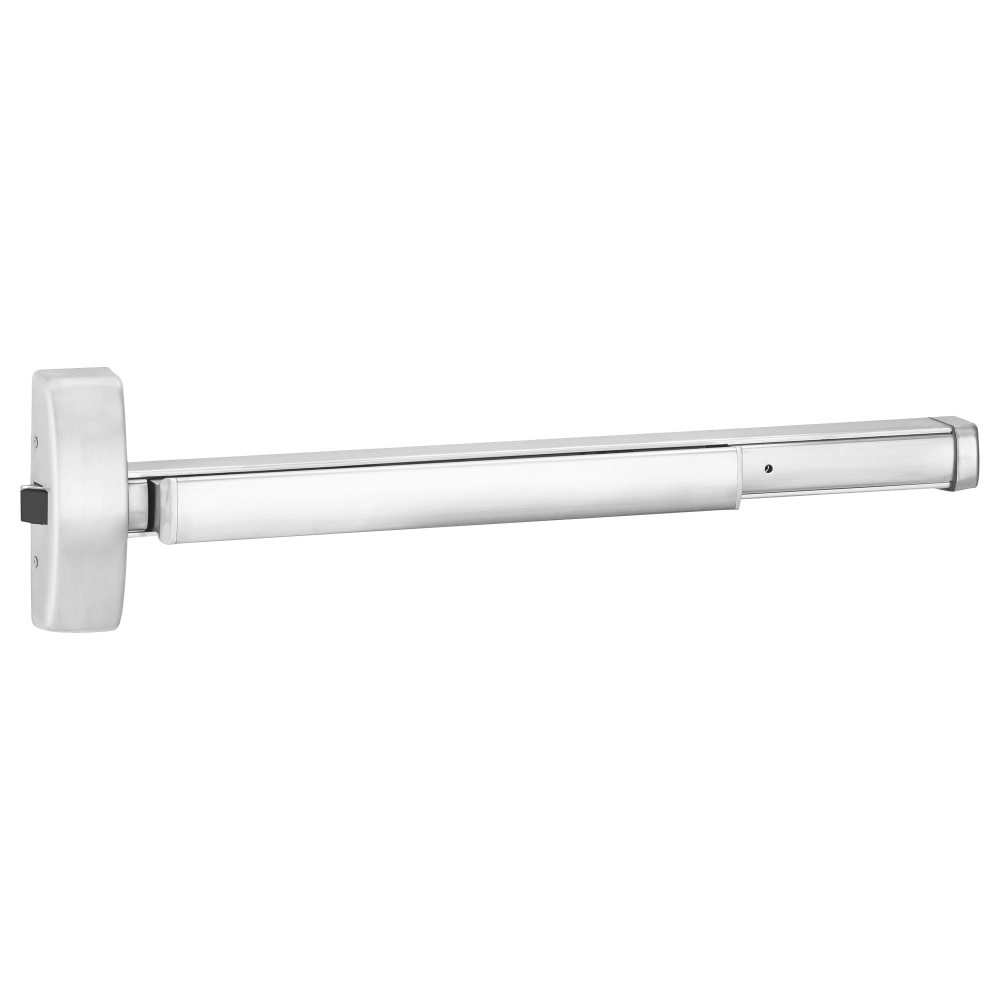

PHI E2103 630 48 RHR Grade 1 Rim Exit Device InstructionsPHI E2103 630 48 RHR Grade 1 Rim Exit Device offers a reliable and aesthetically pleasing solution for high-traffic areas. Designed with a 48" wide stile pushpad, this Grade 1 electric rim exit device is ideal for storeroom applications and accommodates a variety of door types, making it a versatile choice for both commercial and residential settings. Constructed from durable satin stainless steel, it features hex key dogging for enhanced security and ease of use. The device is UL listed for panic and fire hardware and meets ANSI A156.3 Grade 1 standards, ensuring compliance with safety regulations. With a deadlocking stainless steel latchbolt featuring a 3/4" throw, you can trust in its robust performance. This exit device is reversible and fits doors ranging from 1-3/4" to 2-1/4" in thickness, with a maximum width of 4'. It also includes a standard S300 strike, with optional strikes available for specific applications. The touchbar height is conveniently set at 39-15/16" from the floor, though it can be adjusted to meet unique requirements. Whether for healthcare facilities or educational institutions, the PHI E2103 Rim Exit Device combines functionality, security, and elegance, making it an essential addition to your building's safety infrastructure.
Grade 1 Rim Exit Device
Grade 1 Electric Rim Exit Device, Wide Stile Pushpad, 48" Device, Storeroom Function, Hex Key Dogging, Satin Stainless Steel Finish, Left Hand Reverse
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation's largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
Grade 1 exit devices that accommodate doors with vision lites or glass windows.
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.
DOORS - For all types of single and double doors with a mullion. For mullions, see page 18. Available for 1-3/4" to 2-1/4" thick, up to 4'-0" wide opening. For thicker doors, consult factory. Furnished standard for 1-3/4" thick, 3'-0" wide opening.
DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
FUNCTIONS - Functions are field selectable except for the Double Cylinder option. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
DOUBLE CYLINDER - Handed, “10” Function available. Requires two rim type cylinders, not furnished standard. See page 5 and 19. BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.
LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw. STRIKES - No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, please specify when ordering. No. S458, optional strike for use on Mullion applications, please specify when ordering. For optional strike information see page 34.
DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates. R
EVERSIBLE - Reversible for all functions and Trims. Standard packaging RHRB.
UL LISTED - Panic and Fire Exit Hardware.
Conforms to UL10C and UBC 7-2.
ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
FINISHES - 605, 606, 612, 613, 625, 628, 630
Attributes
Ship via: Can Ship UPS
Manufacturer surcharge: 3.5%
Ansi: BHMA A156.3 Grade 1 Listed
Baa Qualified: Yes
Base Material: Stainless Steel
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48"
Device Type: Rim
Dogging Options: Hex Key Dogging
Door Material: All Types
Door Thickness: 1-3/4" to 2-1/4"
Door Width: 4'
Electric Options: Electric Lock/Unlock
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: No
Grade: Grade 1
Handing: Left Hand Reverse
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Storeroom
Minimum Stile Size: 4-1/4"
Origin: USA
Pack Qty: 1
Physical Appearance: Wide Stile Pushpad
Reversible: Yes
Series: 2100 Series Apex Rim Exit Devices
Strike Standard: S300
Subtype: Rim Exit Devices
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
